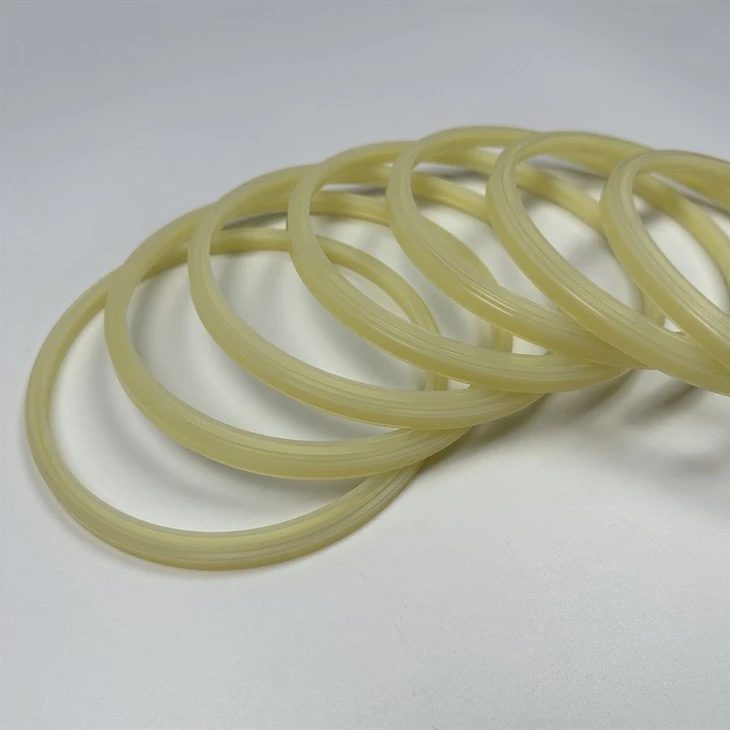

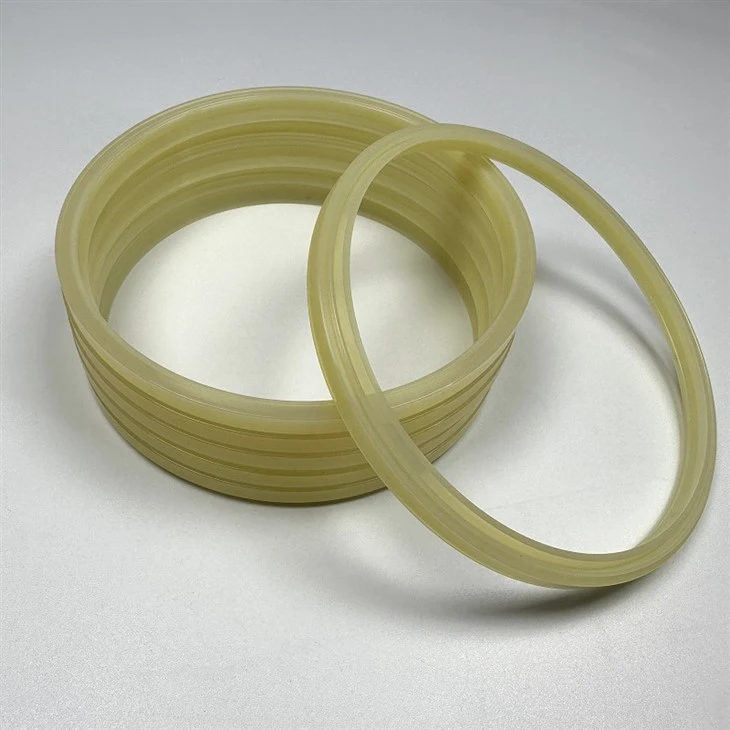

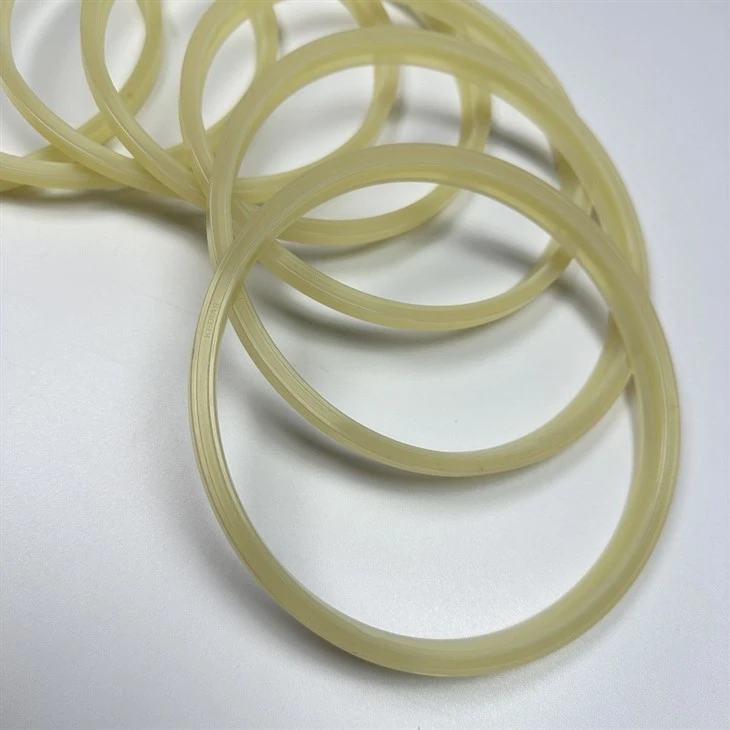

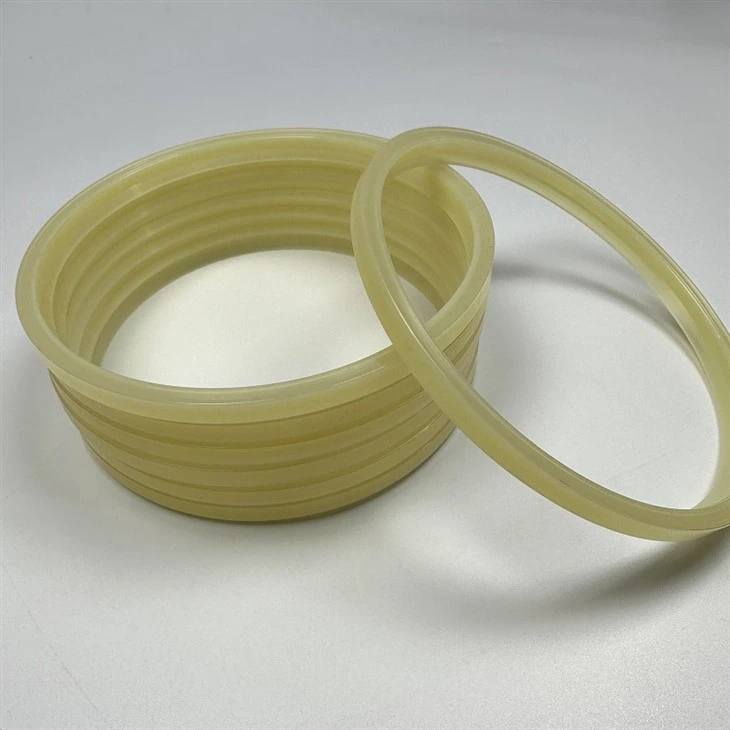

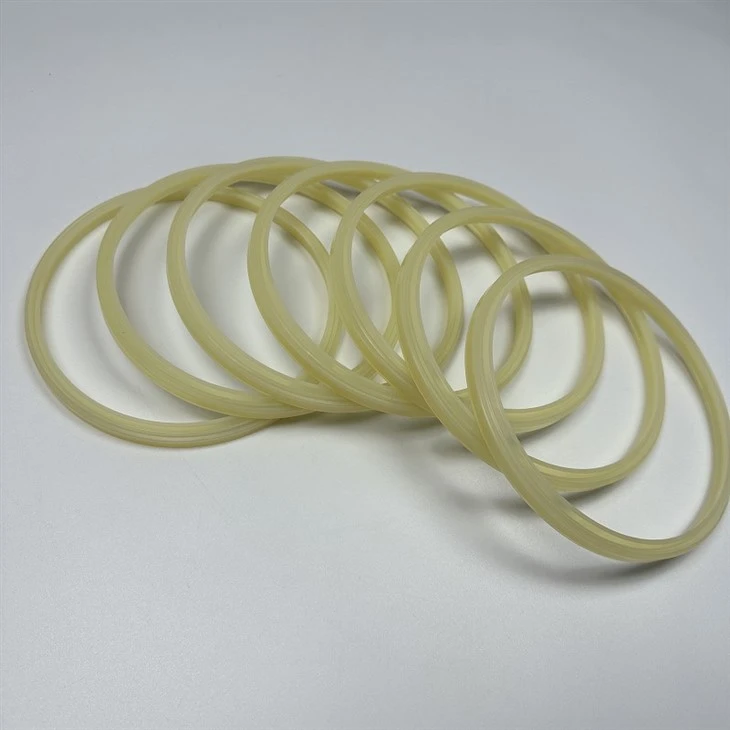

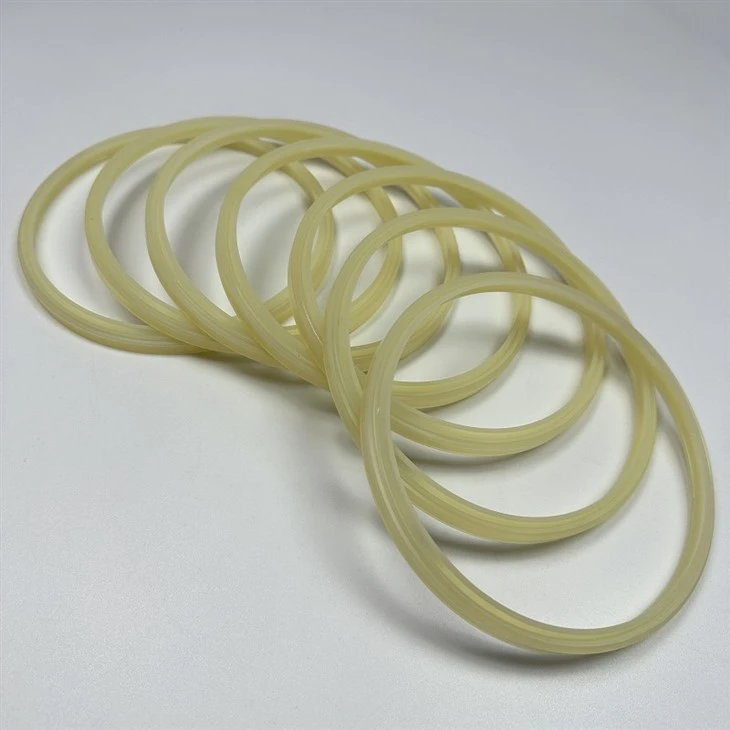

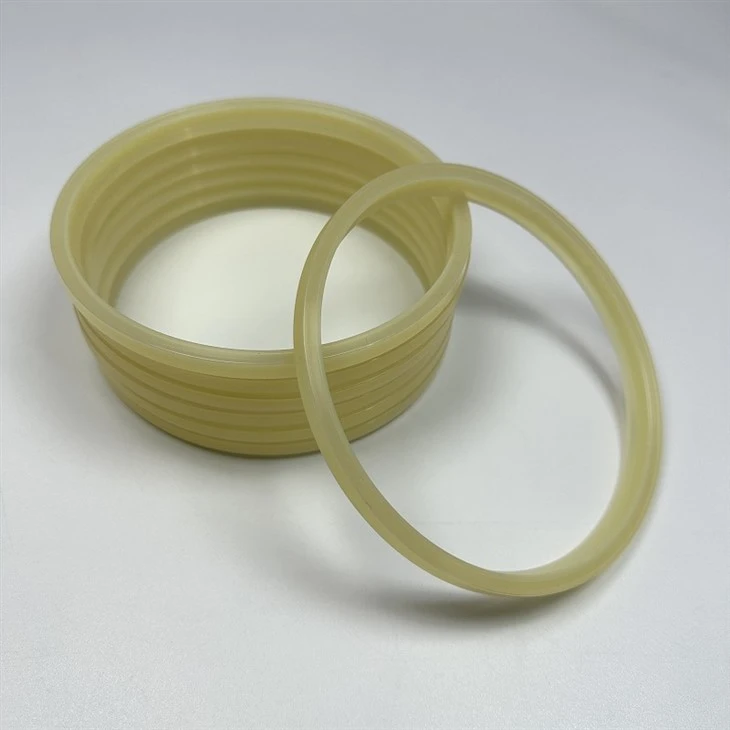

Products Description
Standard material: sealing ring: polyurethane PU
Scope of application:
Applicable to reciprocating or rotary motion systems
Features:
Good dust scraping effect, compact design, simple groove design, simple installation and disassembly, no tools required, elastic materials can reduce friction, wear resistance and long service life.
Operating conditions
|
Speed |
Pressure range |
Temperature range |
Medium |
Diameter range available |
|
1m/s |
- |
-45°c+130°c |
Mineral oil,grease and fire-resistant liquid |
5-400mm |
Overview:
To prevent dust, iron filings, dust, butter, and various kinds of pollutants into the cylinder, To protect the cylinder body and guide components and hydraulic oil pollution.
Range of Application:
Hydraulic, pneumatic and reciprocating motion dirt environment medium.
Medium:
DIN 1524/51525 standard hydraulic oi, Lubricating oil,grease,VDMA24317 standard non flammable oil pressure HFA,HFB,HFC.
Conditions of use: Temperature(-45°c)+(+130°c) velocity(0.5m/s)
Material:
It is A kind of shaw hardness, high wear resistance of 94 A TPU material.
The Installation:
Shield is installed in yu semi-closure axis grooved, Air surface concave groove contact ensures that axial movement of the cylinder body is safe.
